ATS 125A-3200A Automatic Diverter Switch

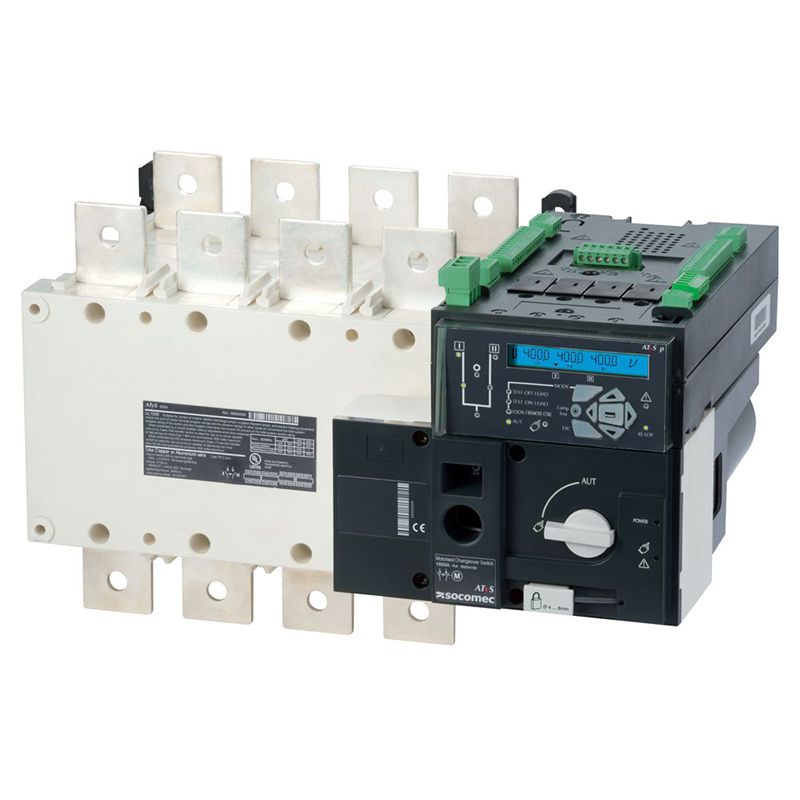

The ATS 125A-3200A Automatic Diverter Switch is 4-pole, monitors the primary network for the set parameters and switches to the second network if necessary. Switching can be done automatically with remote control or manually. The ATS consists of 2 switch disconnectors sitting on top of each other, which are mechanically and electrically interlocked. The ATS 125A-3200A Automatic Load Transfer Switch ensures switching, automatic source switching of two low-voltage power circuits and safety disconnection.
4-pole diverter switch in combination with power unit
ATS 125A-3200A Automatic Diverter Switch can also be combined with an emergency generator : in this case, it is used to automatically switch between two networks, such as the energy utility and the generator grid. The deviation of the input voltage is detected by the ATS and the diesel generator is started. If the voltage of the generator is stable, it is switched to the generator grid. When the input voltage of the EVU becomes constant again, the ATS switches back to the preferred grid and stops the unit after it has cooled down. These times are adjustable. Schedules for trial operations are also possible.
Schedule for trial operation
If the voltage of the generator is stable, it is switched to the generator grid. If the input voltage of the RU is constant again, the ATS switches back to the preferred grid and stops the unit after a cooling phase (times can be adjusted). In addition, a schedule for trial operation can also be programmed.
Advantages ATS Automatic Diverter Switch 125A-3200A
- Optional communication modules
- Recording the events
- Configuration
- Power measurement optional
- Regular starts of the generators can be set
