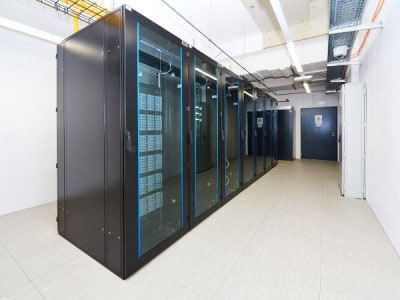

Data center cell for maximum security
The high-security room cell (HSRZ) is used in IT, communication and back-up/archive systems when it comes to high availability. The room system has a very high mechanical strength against extreme impact and pressure loads, even in the event of a fire. The system has been tested according to the strict specifications of EN 1047 Part 2 and consists of wall components that have passed a test according to EN 1363 F180. This means maximum IT protection with maximum security and IT protection in accordance with EN 1047/2, including statutory fire protection in accordance with DIN 4102.
We offer you all-round protection from a single source. We make the inventory for you, individual planning of your cell, offer customer-specific solution proposals, prepare a detailed offer for you and carry out the complete assembly or installation for you. Installation of your high-security cell.
The high-security room cell offers
- A flexible room layout
- Security levels appropriate to customer needs
- Subsequent change options
- High adaptability to the building structure
Functions of Server Room Security Cell
- Fire resistance 180 minutes, fire-resistant (component testing for wall, ceiling, floor)
- Fire resistance 90 minutes (component testing for doors, bulkheads)
- R 60 D Classification
- Compliance with the limit values according to EN 1047 Part 2
- ECB•S Certificate
- System testing by an accredited materials testing institute
- Degree of protection according to IP 56
- Burglary protection in accordance with RC 3 DIN EN 1627
- Overall system test IP 56 according to EN 60529
- Protection against electromagnetic radiation
Structure of the high-security cell
- Room with very high mechanical and thermal strength
- ECB•S certified for the highest demands
- Ultra-light special concrete with steel reinforcement (waterproof)
- Door(s) with three sealing levels
- Door(s) with 3D stainless steel hinges, multi-point locking, profile half cylinder and anti-panic function
- Overpressure and air conditioning gate valves
- Fire-resistant pipe and cable bulkheads
