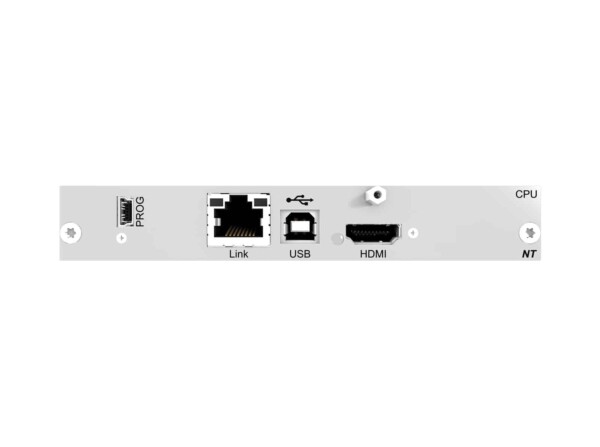

KVM Switch HDMI Extender 2.0
The Draco vario ultra HDMI 2.0 extender enables the operation of source devices (computers) at remote workstations with an HDMI monitor, keyboard and mouse or other pointing devices via a duplex LC fiber optic connection. The device transmits all-digital video signals in 4K resolution up to 4096 x 2160 and 3840 x 2160 at true 60Hz refresh rate and 24-bit color depth with 4:4:4 sampling or 30-bit at 4:2:2. Audio signals can also be transmitted via the HDMI interface. It is also possible to expand with optional Draco vario add-on modules for digital audio inputs and outputs as well as data signals such as USB 2.0 and RS232. For direct video access in the server room, the CPU unit has a local video output for connecting a control monitor. Similarly, the CON Unit offers a video input for connecting a local source, e.g. B. Laptop; Toggle function integrated.
Features Draco vario ultra HDMI 2.0
- Power source devices from a remote workstation with HDMI 2.0 monitor and USB HID devices
- Transmission of fully digital video signals up to 4K DCI and UHD /li>
- New, lossless video codec, no frame drops, 30 bit 2:2
- The audio format PCM can be transmitted with a sample rate of up to 96 kHz via the HDMI interface
- Local output on CPU side
- Local input on CON side with built-in switching functionality
- Optional: Redundant connections for maximum availability
- Compatible* with:– common operating systems– Draco vario housings– IHSE Draco tera KVM matrix switches with XV interfaces– other basic modules of the Draco vario ultra extenders– all add-on modules of the Draco vario extender series for audio and data signals such as USB 2.0, balanced audio transmission or RS232
*The video transmission of the Draco vario ultra extenders is not compatible with the base modules of the Draco vario series 47x/48x and the Draco compact series 477.
