EBS3000WCC External bypass switch 16A for UPS systems

EPS-RDF Power Distribution-Wall Mounting-3000-WCC

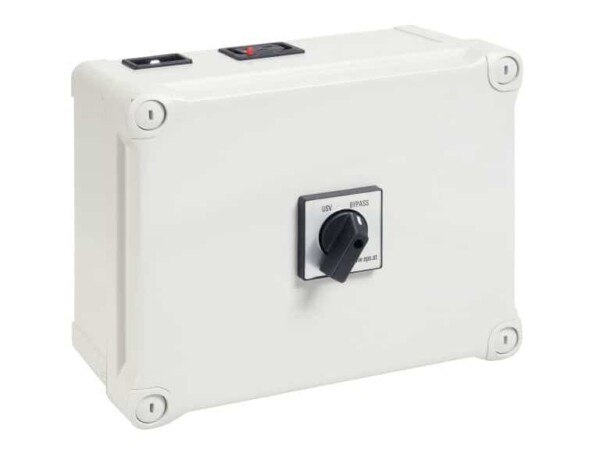

EBS 3000WCC External Bypass Switch
3000 VA, 16A/230VAC
Wall-mounted enclosure, version in plastic enclosure
1* IEC 16A C19 Built-in Socket for Power Cord
1* IEC 16A C20 Panel Mount Plug for Consumer Outlet
1* IEC 16A C19 Panel Socket for UPS Supply Line
1* IEC 16A C20 Panel Mount Plug for UPS Outlet
UltraFastSwitch for switching

External UPS Bypass Circuit for UPS Systems

With this EBS (External Bypass Switch), your UPS systems up to 3000VA, 230V/16A are supplied with safe power, because the load is switched from UPS power to mains power and vice versa without interruption. In addition, maintenance and servicing can take place during ongoing server operation. For this reason, the switch is ideal for highly sensitive systems in computer and information technology.
