Leak detection system for server room
The FG-NET, leak detection system, detects several leaks at the same time. This avoids the risk of one leak obscuring the other. Critical environments such as UPS rooms, warehouses, production halls, IT rooms, server rooms or other critical areas are fully protected against water, acid and other liquid leaks. The FG-NET digital leak detection system can also transmit the leak information to other devices (connected via LAN) via the TCP/IP and JBUS/MODBUS communication protocols, thus providing consumers with important data and information about the leak at an early stage. The FG-NET, leak detection system, has unique features and all the advantages of a classic liquid leak detection device.

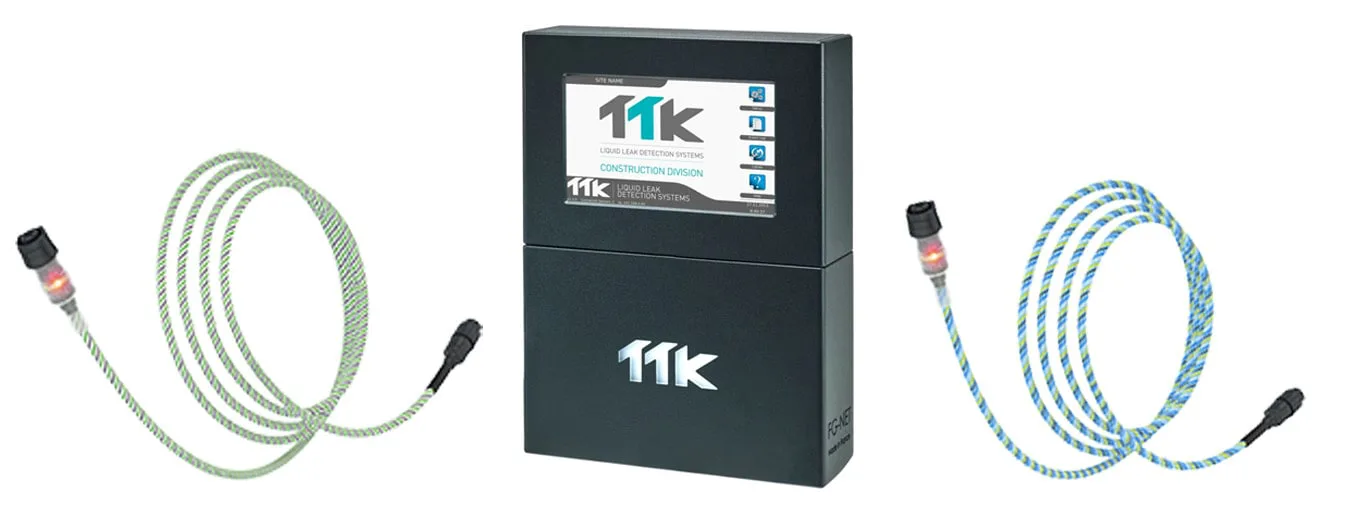

Leak Detection System Sensor Cable for Locating
The FG-NET digital leak detection control unit can be used with all TTK digital sensor cables. In the event of a malfunction of the sensor cables (leak or cable break), the system displays the following messages:
- Primary feedback from FG-NET: An audible warning signal is triggered and a relay is activated. The panel’s touchscreen shows the exact location of the water or acid leak and gives details of the fault (type of fault – leak or cable break), as well as the date and time of the fault. Optionally, integrated site plans of the leak warning installation can also be displayed.
- Secondary extended feedback: Message via a JBUS/MODBUS protocol to BMS. The FG-NET can control dynamic drawings on the host BMS. Send email alerts and SNMP traps to a LAN-connected BMS using a standard Ethernet connection.
Features of the FG-NET Leak Detection System for IT and EDP
- The location of a liquid leak is precisely recorded
- Each sensor cable is responsive and can be given a specific name
- Detection of multiple simultaneous leaks (120 cables = 120 alarms)
- Three different types of sensor cables can be connected to the same panel
- Cable breaks can be detected (location down to the nearest cable)
- If a cable breaks, the leak detection system maintains its integrity (all cables in front of it are checked for faults)
- Compatible with existing surveillance systems
- Easy expansion and upgrade of the leak warning system
- No additional power sources or area panels required
