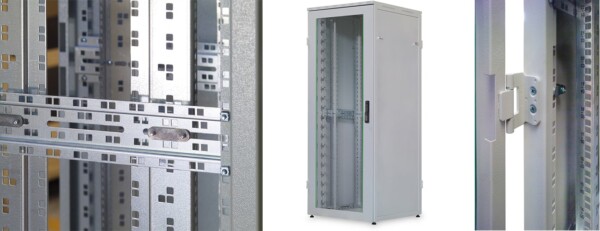

19″ Network Cabinet 26 U for IT, EDP
The 19″ server cabinet in the color gray is ideal for high demands in IT. The server cabinet was manufactured, designed and developed to meet the high requirements of the IT infrastructure. It offers maximum stability for your IT environment and also an enormous degree of flexibility. Due to the high load capacity of the 483 mm (19″) profile rails, the server cabinet can also hold a weight of up to 1200 kg. The modern and modular design of EPS’s 19″ server cabinet also offers replaceable 483 mm (19″) blank panels in the roof and bottom of the cabinet.
Features 19″ Server Racks
- The innovative 19″ server cabinet was specially designed and produced for cabling and network components
- The front door is made of a complete metal frame with 4 mm thick tempered glass
- The server cabinet is equipped with 75% perforated steel doors
- at the same time, there is a special locking system with swivel lever handle on the front and rear doors
- The door opening angle of the 19″ cabinet of up to 270° allows for the best accessibility at all times
- All side panels are lockable and can be easily removed
- Each cabinet includes galvanized 483 mm (19″) profiles mounted inside the front and rear
- These are connected to the main frame by depth struts at three points each on the left and right
- They are depth-adjustable and have a marking of the respective height unit
- The fully assembled 483 mm (19″) cabinets are available in different U (height units)
- Available U: from 22U to 42U and a width of 600 or 800 mm and a depth of 600, 800 or 1000 mm
- Standard colour grey (RAL 7035) and black (RAL 9005); other colors available on request
For other special customer requests, the EPS team is always at your side. Contact us! We are happy to help.
