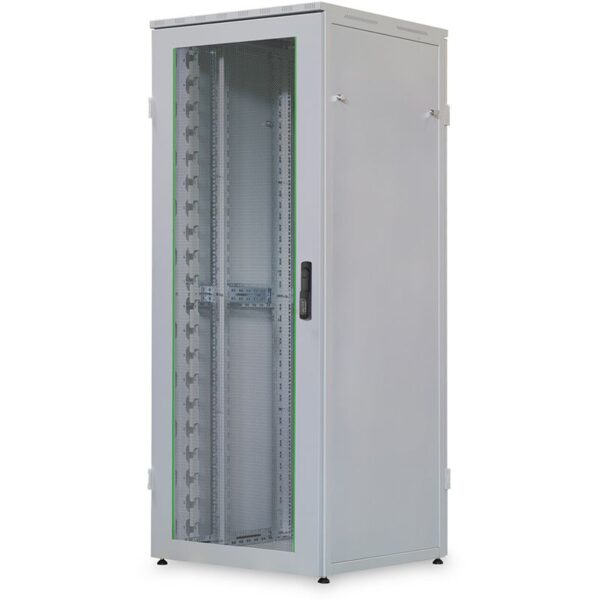

IT 19″ Server Cabinet 26U with Perforated Door

  • 1.5 mm robust steel sheet with high load capacity, powder-coated
  • Side panels removable and lockable
  • Ventilation slots for active and passive ventilation
  • Protection class IP 20
  • Glass-steel front door, 230° opening angle with swivel lever handle
  • Perforated double-leaf steel rear door
  • Spring-loaded hinges allow for easy door installation or the door change
  • 3-point locking with swivel lever handle in front and rear door, optionally available with cylinder lock
  • Can be used for all server types with 19″ mounting
  • 483 mm (19″) profile rails on the front and rear, depth variable
  • Large cable entry with rubber edge sliding mechanism at the bottom
  • Height-adjustable leveling feet to compensate for uneven floors
  • Roof module for ventilation unit
  • 2 keys for doors and side walls
  • Complies with IEC 297-1/2 (19″ unit) and IEC 917-2-1 (metric unit)
  • Extensive range of accessories available
  • Colour: black, RAL 9005
  • Payload: 1000 kg
  • U.S.: 26
  • Dimensions (HxWxD): 1260 mm, 600 mm, 1000 mm
  • Cabinet Type: Server Cabinet
  • Front door: glass door
  • Width: 600 mm
  • Depth: 1000 mm

Network Cabinet 19 Inch

The 19 inch server cabinet 26U with perforated door was developed for the safe storage of server equipment and scores with high user-friendliness and an aesthetic appearance. Ideally, the server cabinet is suitable for small to medium-sized server rooms and multi-data center installations. The modular frame construction also guarantees the best robustness and the high air circulation (perforation 63%) and cooling management (ventilation) ensure that the devices are always supplied with sufficient cold. By means of a quick-release system for side walls as well as front and rear doors, the components inside can be accessed quickly and easily at any time.

Features Server rack 26U with perforated door black

Each cabinet also has two sets of robust 19″ profile rails that can be adjusted to the full depth. Four sets of depth struts in the gaps provide additional stability. The load capacity is up to 1000kg and a 4-point lock on the front door and a 3-point lock on the rear door ensure the best security., The 19″ server cabinet 26U with perforated door is the optimal solution for your server room.

Full-service micro data center

Server cabinets find a special application in our micro data center with full service (Compact Data Center). It is a full-fledged, space-saving data center in a small format. The small DataCenter includes servers, software and full service.

The EPS team will be happy to assist you with special customer requests. Contact us! We will be happy to help you.
