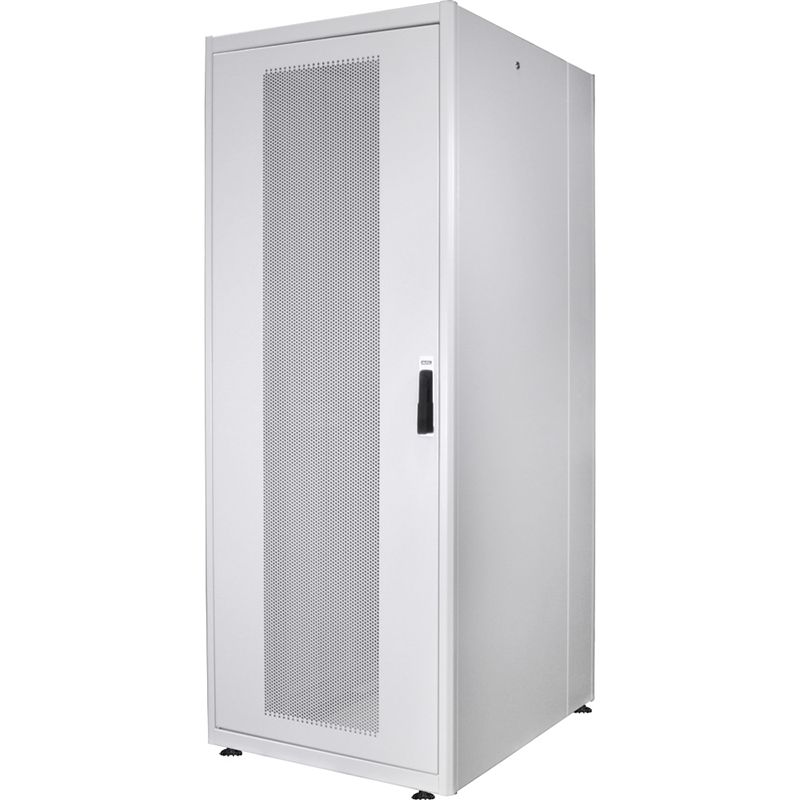

IT 19 inch Server Cabinet 42U Perforated Door

  • IT 19″ Server Cabinet 42U Perforated Door
  • Protection class IP20
  • Front and rear doors made of 63% perforated steel
  • Locking system with swivel lever handle on the front and rear doors (prepared to accommodate profile half cylinders)
  • 230° door opening angle of the front and rear doors
  • Double-leaf rear door
  • Front door with 4-point locking and rear door with 3-point locking
  • Horizontally split side panels (two per side), lockable and removable
  • Incl. 4 pieces of leveling feet and 4 pieces of castors, which are already attached under the cabinet (front castors are lockable)
  • 483 mm (19″) profile rails mounted on the front and rear inside the cabinet, galvanized
  • 483 mm (19″) profile rails are adjustable in depth and marked with the height unit
  • 1.5 mm thick sheet steel
  • High frame rigidity due to special sheet metal bending technology
  • Built-in depth struts provide stability
  • Slide-on cable inlet with foam rubber seal in the floor and roof module
  • Cable inlet with floor and roof with brush strip left and right
  • Roof is prepared to accommodate a fan unit, incl. perforated cover
  • Delivered fully assembled
  • Package dimensions (HxWxD): 2110x880x1300 mm
  • Weights: 144 kg (net); 157 kg (gross)
  • Colour: light grey, RAL 7035
  • Payload: 1000 kg
  • U: 42
  • Dimensions (HxWxD): 1970,800,1200 mm
  • Cabinet Type: Server Cabinet
  • Front door: steel door, perforated
  • Width: 800 mm
  • Depth: 1200 mm

IT 19 inch Server Cabinet 42U Perforated Door Depth 1200mm

The 19 inch server cabinet 42U with perforated door was developed for the safe storage of server equipment and scores with high user-friendliness and an aesthetic appearance. Ideally, the network cabinet is suitable for small to medium-sized server rooms and multi-data center installations. The modular frame construction also guarantees the best robustness and the high air circulation (perforation 63%) and cooling management (ventilation) ensure that the devices are always supplied with sufficient cold. By means of a quick-release system for side walls as well as front and rear doors, the components inside can be accessed quickly and easily at any time.

Other features of the IT 19 inch Server Cabinet 42U

Each cabinet also has two sets of robust 19″ profile rails that can be adjusted to the full depth. Four sets of depth struts in the gaps provide additional stability.

The load capacity is up to 1000kg and a 4-point lock on the front door and a 3-point lock on the back door ensure the best security., The 19″ server cabinet 42U with perforated door is the optimal solution for your server room.

The EPS team is always on hand to meet special customer requests. Contact us! We are happy to help.
