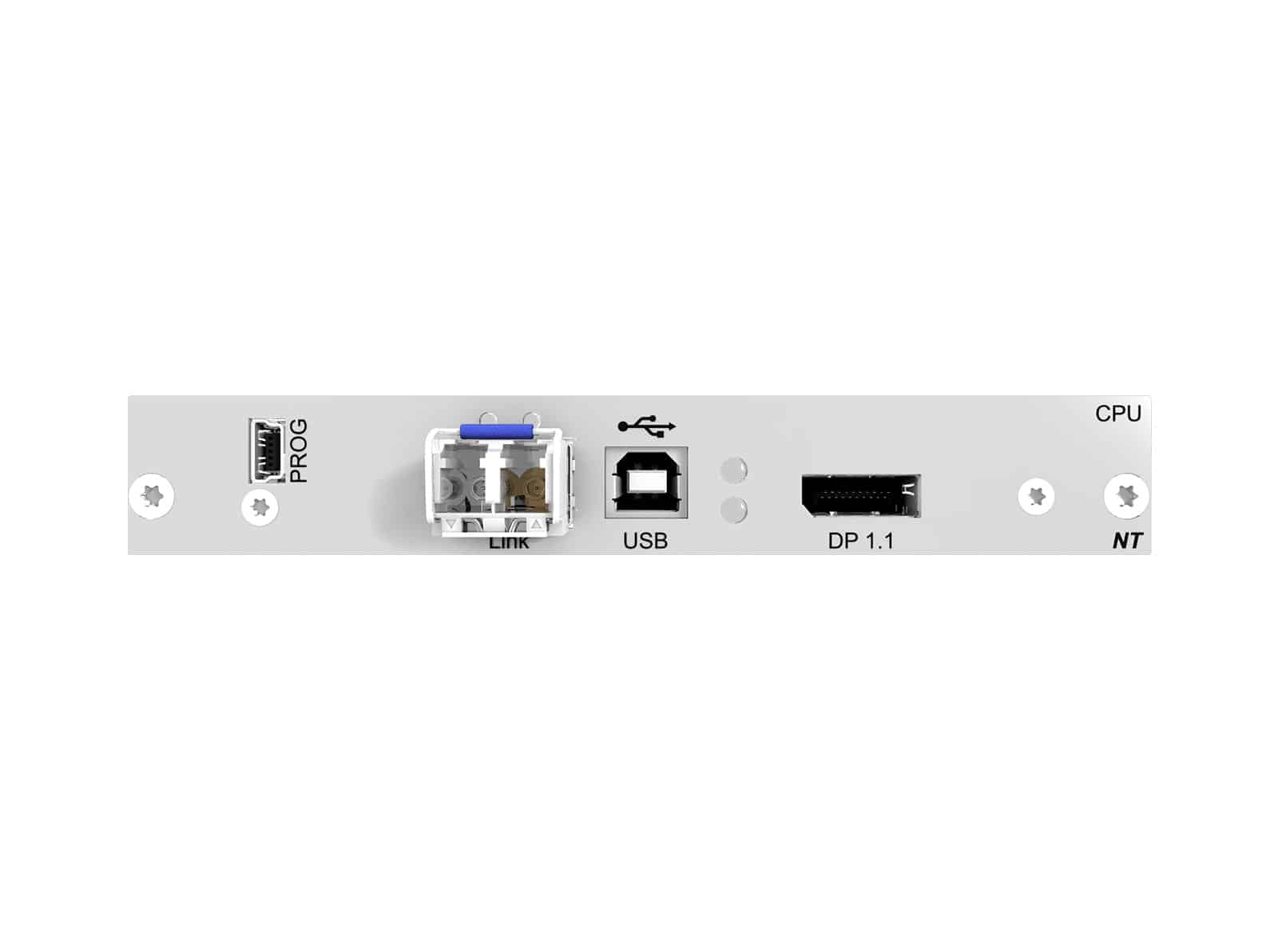

Draco vario ultra lossless extension picture and sound signals
The Draco vario ultra Display Port KVM extender enables lossless extension of high-resolution image and sound signals via the DisplayPort interface. Fully digital video signals can be transmitted in 4K resolutions up to 4096 x 2160 and 3840 x 2160. The DisplayPort extender also supports all major digital audio standards without the need for additional audio modules. The sound is reproduced directly from screens with integrated speakers. The combination with optional add-on modules for digital audio is also possible without any problems. The Draco vario ultra DP1.2 is also compatible with all Draco tera KVM matrix switches.
Features Draco vario ultra DisplayPort 1.2
- The basic version allows the operation of a remote workstation with DisplayPort monitor and USB-HID
- Transmission of fully digital video signals up to 4K DCI and UHD
- No frame drops, lossless image compression, optimal color reproduction 4:4, deep color (4:4, deep color reproduction)
- The DisplayPort interface can transmit the PCM audio format at a sample rate of up to 96 kHz
- Lower screen resolutions can be switched without delay embedded in higher resolutions
- Optional: Redundant connection for maximum availability
- Compatible* with:– common operating systems– Draco vario housings– IHSE Draco KVM matrix switches with XV interfaces– other basic modules of the Draco vario ultra extenders– add-on modules of the Draco vario extender series for audio and data signals such as USB 2.0, balanced audio or RS232
* The video transmission of the Draco vario ultra extenders is not compatible with the base modules of the Draco vario series 47x/48x and the Draco compact series 477.
