DC Power Supply from Eaton DC DC 48V
This product is no longer in production! However, we are available for questions about other types as well as service or services. maintenance is available.
Eaton’s RAPS3-320-14xx system can be customized and customized – the outlets and body are adaptable, depending on the needs and purpose of the application. The number of rectifiers can also be expanded. It is an ideal solution for telecommunications applications in the power range from 2kW to a maximum of 12kW. The perfect solution for those who need a compact and power-efficient DC power supply.
Where will this DC system be installed?

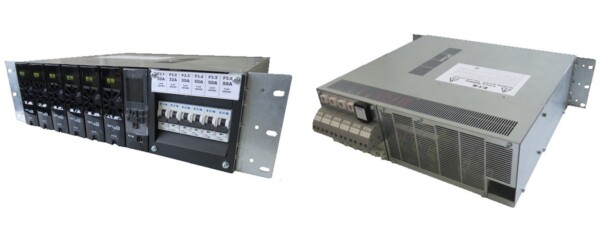

This 3U-19 inch rack system is suitable for installation in 500mm deep system cabinets. Installation and commissioning is easy, there are different AC connection options possible: 1x3phase, 3x1phase. 3U subrack with universal interchangeable adapter for 19″ or ETSI mounting. Up to 6 rectifier modules with the highest efficiency and power factor. Practical rectifier expansion during operation (hot-swap).
Important standards of the RAPS3 series:
- EMC standards: EN 300 386: V1.3.3 and V1.4.1 and others
- Environmental requirements: ETSI EN 300 019-1-1/2-1 Class 1.2 (storage) and more
- Safety: EN 60950-1: 2001 and EN 60950-1: 2006
The product complies with the relevant international standards.
