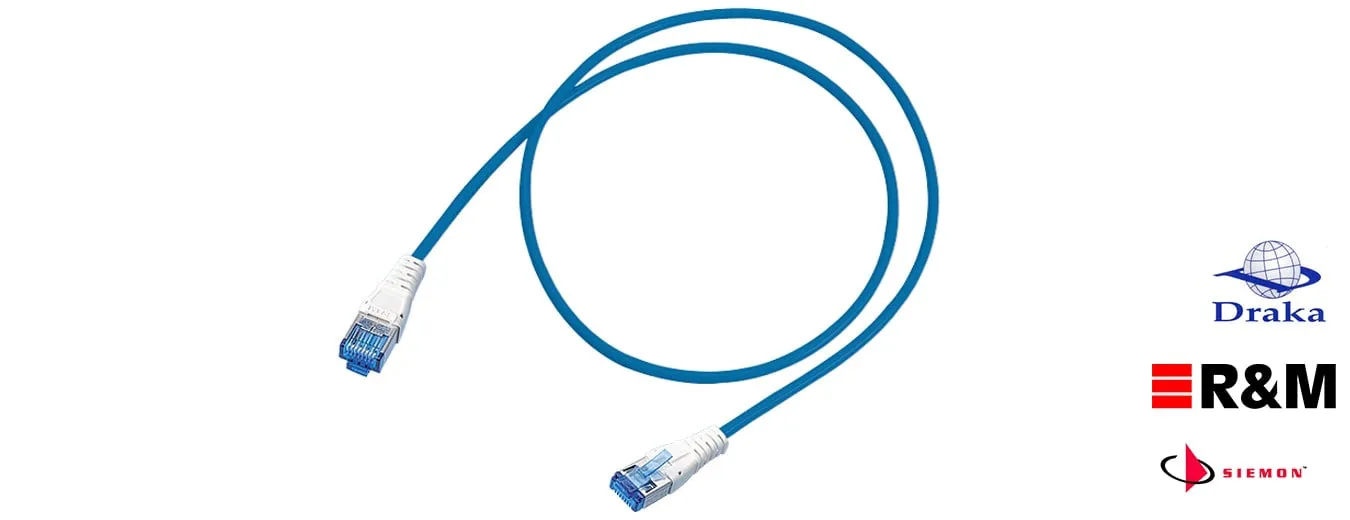

RJ45 Patch Cord Cat. 6

  • Cable name: S/FTP
  • Outer jacket: LSFRZH
  • Inner conductor diameter copper strand: AWG 26/7
  • Shade per pair: AL/foil
  • Outer shade: Copper braid
  • Outer diameter: max. 6.2 mm

Patch Cables Server Room Cabling

Cable S/FTP flexible, 4 x 2 x AWG 26/7, LSFRZH, 5012 light blue. Low smoke according to IEC 61034, flame-retardant according to IEC 60332-3C and halogen-free according to IEC 60754-1. Halogen-free and heavy metal-free according to EU RoHS 2 directives.

Assembled on both sides with

RJ45 connector according to Cat. 6 component standard. Base standard: IEC 60603-7 RJ45 Category 6; IEC 60603-7-1 to 5. Anti-kink function in accordance with TIA 568-C. The patch cord complies with Cat. 6 or for the construction of Class E and Class EA transmission channels in accordance with ISO/IEC 11801 Edition 2.2, June 2011 and EN 50173-1, May 2011 (DIN EN 50173-1). Suitable for 10GBASE-T applications according to IEEE 802.3™ Section Four.

Optional: Visual coding, mechanical coding, and anti-release protection.
