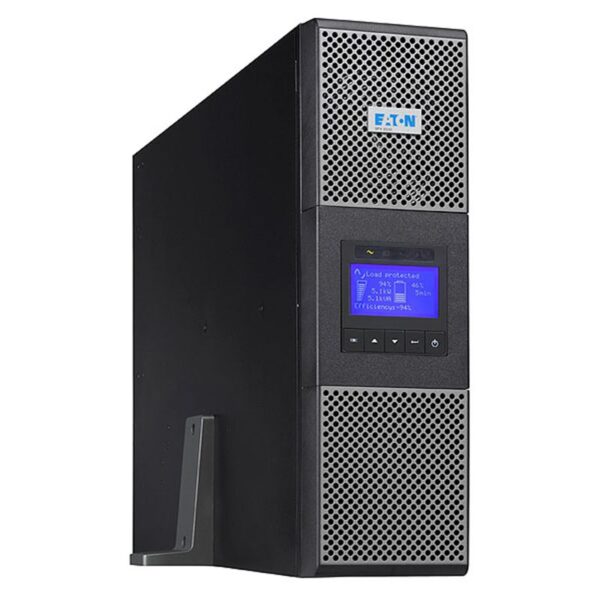

Eaton UPS 9PX 6kVA-11kVA
The Eaton 9PX (6kVA-11kVA) UPS provides energy-efficient power protection for small and medium-sized server rooms and IT infrastructures. It delivers double-conversion protection with 40% less energy consumption and 28% more power. This makes the 9PX UPS the perfect UPS for IT and facility managers who keep an eye on their energy costs and are looking for reliable, modern-generation power protection solutions. With online double-conversion technology and efficiencies of up to 95% in online double-conversion mode and 98% in high-efficiency mode. Equipped with a graphical LC display available in seven languages. The uninterruptible power supply system delivers more active power (watts) thanks to the power factor of 0.9 and can therefore protect more devices.
Measurement of the UPS energy consumption of the Eaton 9PX 6kVA-11kVA
- Parallel operation with HotSync technology
- Maintenance bypass as standard (on HotSwap/BP version)
- Energy consumption measurement – kWh data can be monitored via the LCD display or Eaton’s Intelligent Power® Software Suite
- Compatible with virtual environments (VMware, Hyper-V, Citrix Xen, Redhat)
Three-phase UPS system 9PX Eaton
Thanks to its outstanding efficiency, the classified 9PX helps to reduce your energy and cooling costs in operation and save money in the process. Thanks to the double-conversion topology, the UPS system also ensures continuous monitoring of the power supply status and also regulates the voltage and frequency. It is also compatible with virtual environments such as VMware, Hyper-V, Citrix Xen or Redhat.
UPS Status and Metrics
Thanks to the modern graphic LCD, all important information on the status and measured values of the UPS can be easily and quickly retrieved at a glance. The Eaton UPS 9PX can also measure power consumption down to the output group level and display it visibly for the user. The 9PX 6kVA, 8kVA and 11kVA are available in RT6HE format (optimized for rack or tower setup) and all models in this UPS range are automatically supplied with feet and rack kit.
UPS Batteries and Runtime
To increase the service life of the batteries, the Eaton 9PX UPS also uses the ABM® system developed by Eaton. The batteries of the UPS system are optimally maintained in a three-stage charging process. To increase the runtime in battery mode to several hours, external battery modules can also be connected to the UPS during operation. The design of the 9PX UPS system ensures that batteries can also be hot-swapped during operation. With both the UPS system and the external battery modules, the batteries can be replaced from the front without having to remove the UPS from the rack.
Communication Options of the Eaton 9PX UPS
The efficient UPS system offers a number of communication options. For example, USB and relay interfaces are available as standard. A communication slot can be used to expand communication with additional cards, such as MODBUS, network or additional relay contacts. In addition, the UPS comes with Eaton’s license-free Intelligent Power Suite. This allows servers to be shut down in an orderly manner in the event of a power failure and at the same time all functions of the 9PX UPS system can be monitored.
