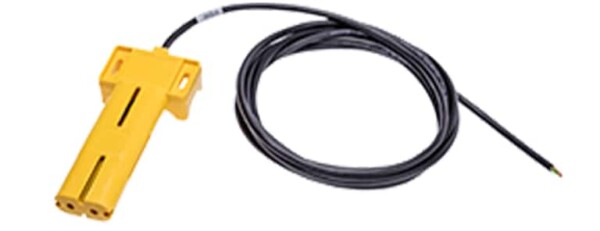

FG-ODP Addressable Oil Spot Sensor Leak Detection

  • FG-ODP Addressable Oil Spot Sensor Leak Detection
  • Outer diameter: 40 mm
  • Hose material: anti-static polymer
  • Connection cable: OD BUS 8771
  • Fully addressable
  • Fast, pinpoint location, reusable
  • Suitable for use in hazardous areas
  • Insensitive to water and dirt

Sensor for detection of leaks and their position

The FG-ODP Oil Leak Detection Sensor is fully addressable. It enables precise detection and location of the leak. The leakage sensor is reusable and suitable for use in hazardous areas. Its insensitivity to water makes it possible to use it in humid environments. The FG-ODP searches for leaks of liquid hydrocarbons and non-conductive solvents. It is particularly used in tank applications.

Advantages of the leakage sensor:

  • Reusable
  • Insensitive to water, UV and dust
  • Suitable for connection with TTK units
  • Rapid leak detection

Areas of application of the point sensor:

The hydrocarbon leak sensor is particularly used in:

  • Tanks
  • Diesel emergency generators
  • Drip trays
  • Industry
  • IT
