DC UPS MAPS1 with output 48V
This product is no longer in production. Here you will find the successor model with improved performance.
EATON Micro Access Power Solutions (MAPS) are ideal solutions for telecommunications applications in the power range from 2kW to a maximum of 4kW that require compact, efficient and flexible DC power supplies. This 1U – 19″ rack system is suitable for installation in 300mm deep system cabinets and is designed with 19″ / ETSI mounting interchangeable adapter.
MAPS1 Power System

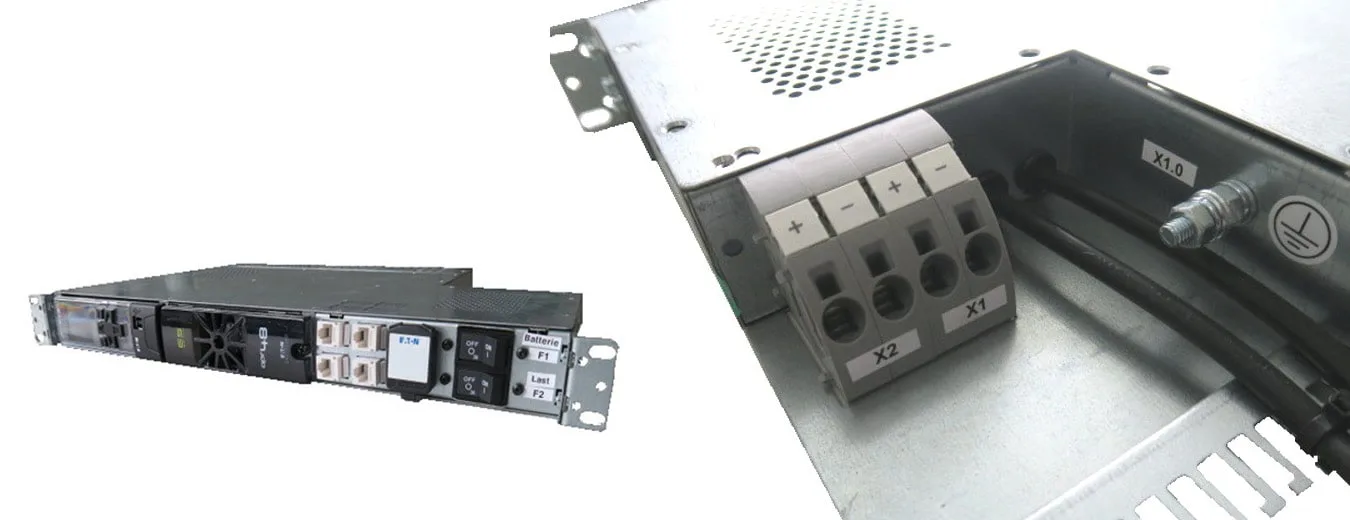

The MAPS1 power supply system is characterized by user-friendly connection technology and thus enables easy installation and commissioning. All load connections as well as the power supply lines are arranged at the back of the integrated distribution panel. Accessible from the front, the rectifiers and the SC200 system controller (depending on the configuration) are equipped with numerous communication options such as Ethernet, USB, GSM mobile communications (incl. SMS), standard modem and TCP/IP as well as the signal and communication connections.
Eaton MAPS Systems with Controller
The Eaton MAPS systems with controller are pre-configured, all system settings are fully customizable and stored in transferable configuration files. This allows for a traceable and repeatable system setup in a single step. The configuration files can also be protected with write and read permissions. Typical applications of the EATON Micro Access Power Solution (MAPS) are, for example, power supplies for telecommunications and building equipment, installed in outdoor multifunctional housings or distribution cabinets for data networks and IP routers.
Other features and features of Eaton’s MAPS system
- 2 consumer outlets – fused via load circuit breakers (depending on configuration)
- Consumer connections via 4x16qmm push-in terminals
- 1 or 2 mains cables, length 2m for AC connection 3G1qmm black with open end
- 1U subrack with universal interchangeable adapter for 19″ or ETSI mounting
- Integrated USB stick for system documentation and storage of test certificates
- Cooling via highly reliable and temperature-controlled fans
- Up to 2 rectifier modules with highest efficiency and power factor
- Pre-configured software (when configured with SC200 controller)
- High power density
- Fast rectifier expansion during operation (hot-swap, with two rectifiers)
