RAPS 3-323-14xx-A2 System Power Supply

This product is no longer in production! However, we are available for questions about other types as well as service or services. maintenance is available.

EATON RAPS3 System Power Supply 48V DC Output Voltage
  • Mains input nominal: 100-240V, 50-60 Hz; Extended: 90-300V
  • Rated load range: 185-275V to 50°C ambient
  • Output Voltage: 48V
  • DC Output Power Nominal (APR48-ES): 12.0 kW
  • Individually and customer-specific adaptable

Power supply with 48V DC output voltage from Eaton

This product is no longer in production! However, we are available for questions about other types as well as service or services. maintenance is available.

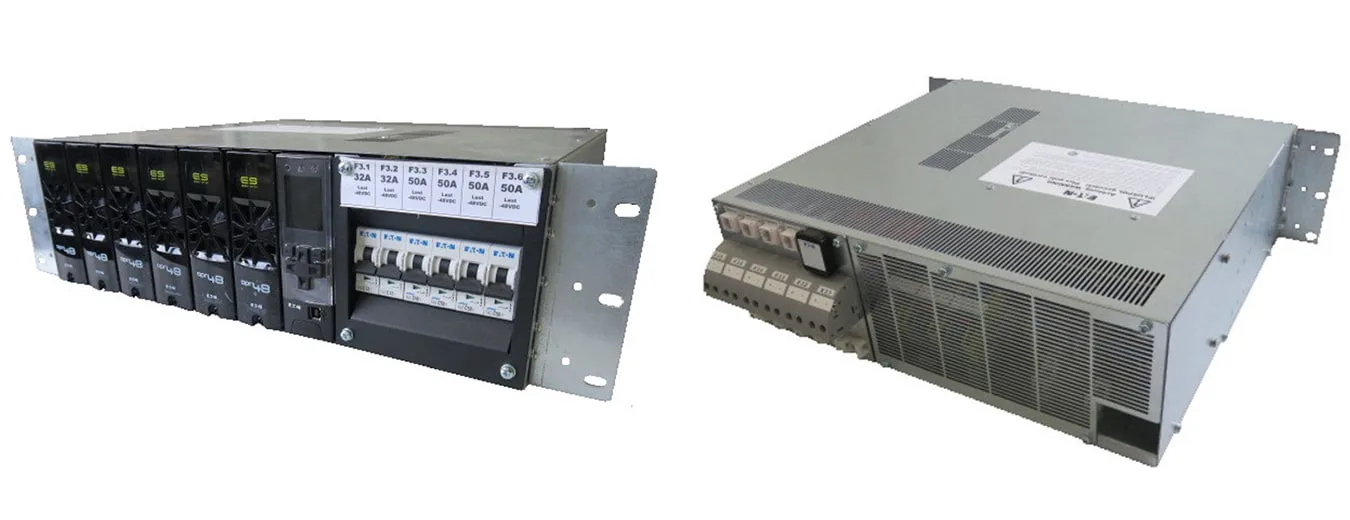

Eaton’s RAPS 3-323-14xx system offers easy and fast installation. It is the perfect solution when it comes to power supplies for telecommunications in the power range from 2kW to a maximum of 12kW. The compact, efficient and flexible DC system is used in telecommunications and building equipment and is fully customizable.

What are the advantages for the customer?

  • Easy and quick installation
  • 8 Consumer Departures
  • Various AC connection options: 1x3phase, 3x1phase
  • 3U rack system for 19″ or ETSI mounting
  • Up to 6 rectifier modules with highest efficiency
  • Fast rectifier expansion during operation (hot-swap)

Important standards of the RAPS3 series:

  • EMC standards: EN 300 386: V1.3.3 and V1.4.1 and others
  • Environmental requirements: ETSI EN 300 019-1-1/2-1 Class 1.2 (storage) and more
  • Safety: EN 60950-1: 2001 and EN 60950-1: 2006

The product complies with the relevant international standards.

Related Articles

We will be happy to answer your questions and provide technical information .
