Industrial UPS system 30-200kVA / 30-200 kW
Strong and intelligent power protection for demanding industrial environments is provided by the Eaton 9PHD UPS. UPS power levels: 30kW, 40kW, 50kW, 80kW, 10kW0, 120kW, 150kW, 160kW, 200kW. The system is designed for use in the toughest conditions. The industrial UPS offers reliability, safety and cost-effectiveness in all industrial applications. It is also suitable for use in the data center. We also offer the UPS accessories such as power strips.

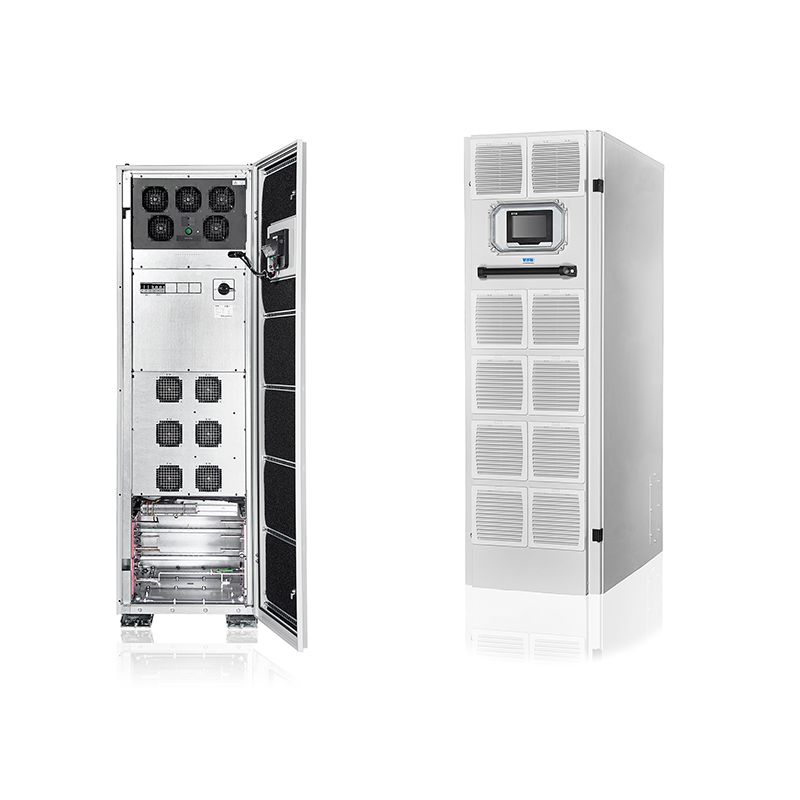

Robust UPS Eaton 9PHD (30-200kVA, 30-200kW)
- Robust construction for demanding industrial environments and industries
- UPS Power: 30kW, 40kW, 50kW, 80kW, 10kW0, 120kW, 150kW, 160kW, 200kW
- UPS 9PHD provides protection against dirt, dust, water, and moisture with lid options ranging from IP23 to IP54
- Uniformly coated PCBs
- Stable UPS control cabinet for environments with vibration and seismic activity
- Intelligent technology for maximum reliability
- UPS system touchscreen screen for easier use
- Modular design of the Eaton UPS enables the creation of fault-tolerant N+1 units
- Redundant monitored cooling fans in each power module
UPS Power Supply Industry, Production
- Intelligent technology for minimal operating costs
- 9PHD-Eaton UPS sets new standards with up to 97% efficiency in online double-conversion mode
- Superior efficiency of the Eaton UPS of > 99% in ESS (Energy Saver System) mode
- Power factor 1 increases unit performance by 10 – 20% compared to average UPS
- Easy deployment to optimize installation costs
- Front access for UPS installation and UPS maintenance
- Lifting eyes for easier handling of the unit during installation
- Suitable for 3- and 4-cable networks and a voltage range of 380 V – 480 V without transformers
- Safe installation and operation of the Eaton UPS system 9PHD
- Unit features halogen-free cables
- Connectors in the battery strings to increase safety during battery replacement
- Battery disconnector in battery cabinet insulated from hydrogen gases
